self drilling screw

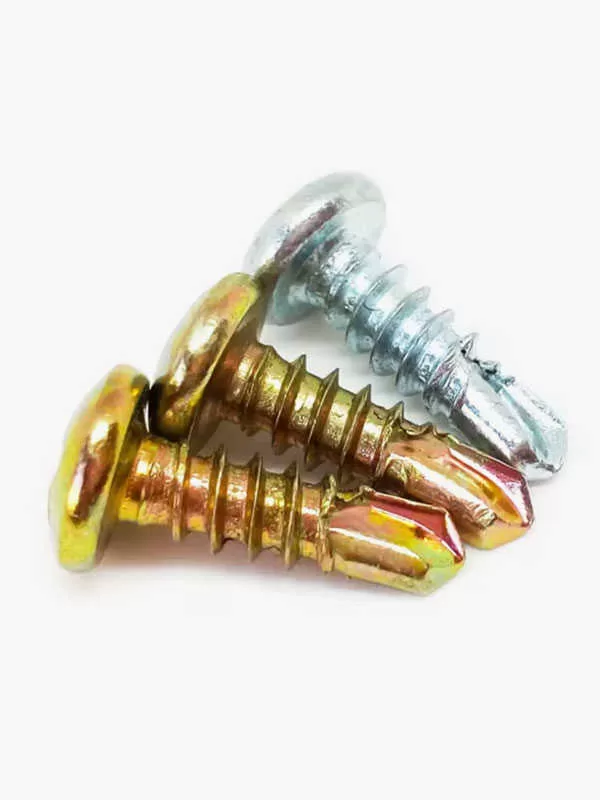

Phillips Pan Head Self Drilling Screw
Application of Pan Head self drilling screw
· Residential steel frame construction · For light duty purpose · Skin sheet to steel · Suitable for stitching 1 thick & 1 thin steel plate
 |
Black Phosphated |
|---|---|
 |
White Blue Zinc Plated |
 |
Yellow Zinc Plated |
 |
Nickel Plated |
 |
Ruspert |
|---|---|
 |
Dacromet |
 |
Hot Dip Galvanized |

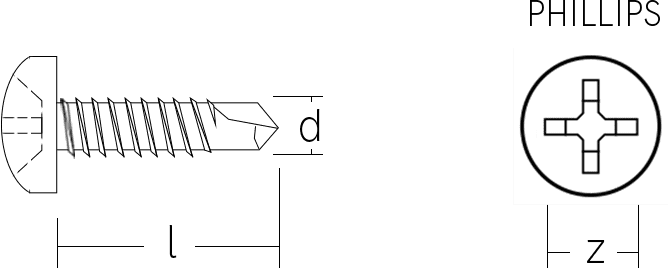

| d: M3.5-M4.8 point: #2, #3 Suggested application |
| Size | 3.5x | 3.9x | 4.2x | 4.8x |
|---|---|---|---|---|
| (mm) |
13
16 19 25 |
13
16 19 25 32 38 50 |
13
16 19 25 32 50 |
13
16 19 25 32 38 45 50 75 |
| #6x | #7x | #8x | #10x | |
|---|---|---|---|---|
| (inch) |
1/2"
5/8" 3/4" 1" |
1/2"
5/8" 3/4" 1" 1-1/4" 1-1/2" 2" |
1/2"
5/8" 3/4" 1" 1-1/4" 2" |
1/2"
5/8" 3/4" 1" 1-1/4" 1-1/2" 1-3/4" 2" 3" |
About delivery
For Pan Head Self Drilling Screw orders with a total order of less than 30 tons, if there are no special circumstances, we will ship within 20 days after ordering
Packaging details
1. We have several sizes of packing dimensions, can be 20kg or 25kg per carton.
2. For large orders, we can design specific sizes of boxes and cartons.
3. Normal Packing: 1000pcs/500pcs/250pcs per small box. then small boxes into cartons.
4. Can provide special packings as middle east clients requests.
Q: What is the MOQ for Pan Head Self Drilling Screws ?
A: Our screw MOQ is usually 1 ton per size.
Q: Can we print our own logo on packaging or Pan Head Self Drilling Screws?
A: Yes, packing and Pan Head Self Drilling Screws we can make according to your requirements.
Q: How long is the delivery time for Pan Head Self Drilling Screw?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your payment term?
A: Generally, 30% T/T in advance ,balance before shippment or against B/L copy.
Q: Are you trading company or Pan Head Self Drilling Screw manufacturer?
A: We are direct Pan Head Self Drilling Screw manufacturer, who owns production lines and workers. No need to worry about extra charges by the middle man or trader.
