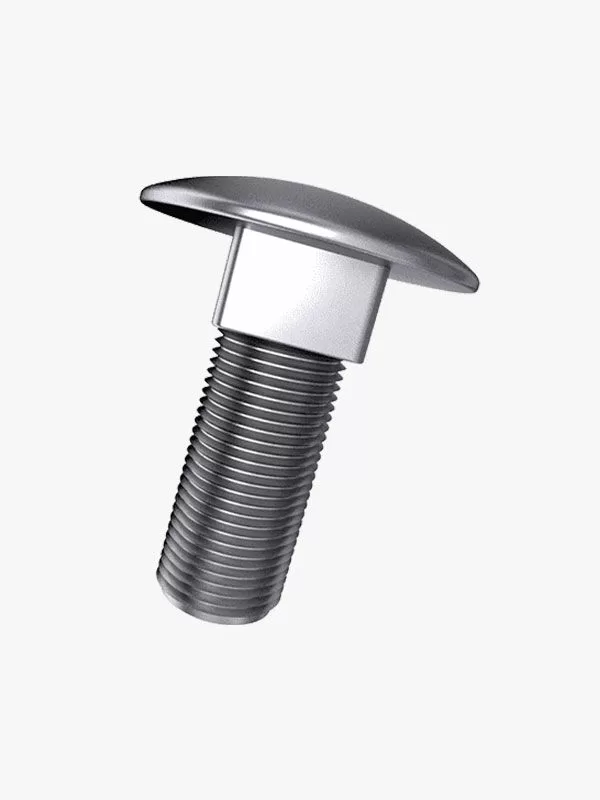

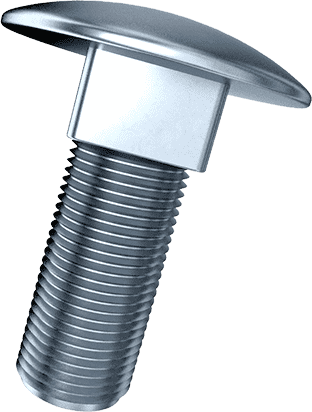

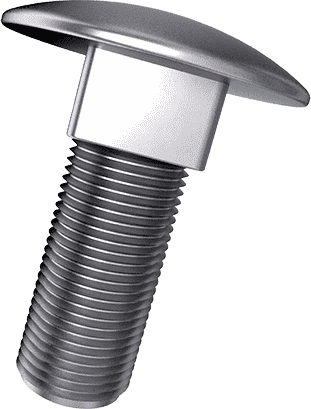

Carriage Bolts

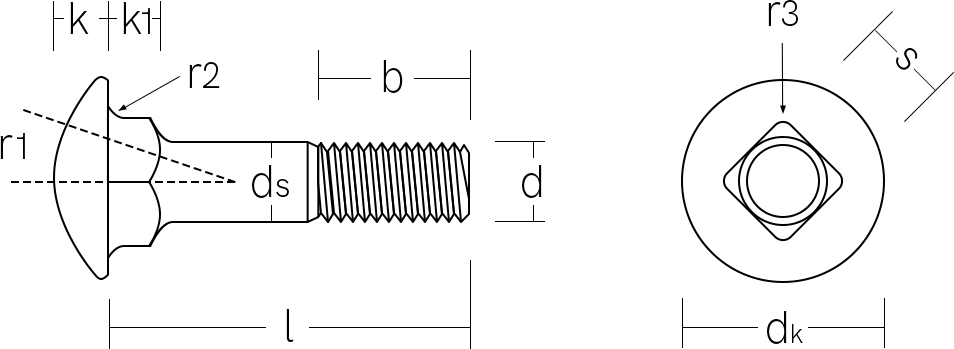

UNI 5737 - DIN 931 - IS0 4014
| d | M5 | M6 | M8 |
|---|---|---|---|
| Pitch | 0.8 | 1 | 1.25 |
| b(l≤125) | 16 | 18 | 22 |
| b(125<l≤200) | 22 | 24 | 28 |
| b(l>200) | - | - | 41 |
| dk(max) | 13.55 | 16.55 | 20.65 |
| dk(min) | 12.45 | 15.45 | 19.35 |
| ds(max) | 5 | 6 | 8 |
| ds(min) | 4.52 | 5.52 | 7.42 |
| k1(max) | 4.1 | 4.6 | 5.6 |
| k1(min) | 2.9 | 3.4 | 4.4 |
| k(max) | 3.3 | 3.88 | 4.88 |
| k(min) | 2.7 | 3.12 | 4.12 |
| r1 | 10.7 | 12.6 | 16 |
| r2(max) | 0.5 | 0.5 | 0.5 |
| r3(max) | 0.75 | 0.9 | 1.2 |
| s(max) | 5.48 | 6.48 | 8.58 |
| s(min) | 4.52 | 5.52 | 7.42 |
| M10 | M12 | M16 | M20 |
| 1.5 | 1.75 | 2 | 2.5 |
| 26 | 30 | 38 | 46 |
| 32 | 36 | 44 | 52 |
| 45 | 49 | 57 | 65 |
| 24.65 | 30.65 | 38.8 | 46.8 |
| 23.35 | 29.35 | 37.2 | 45.2 |
| 10 | 12 | 16 | 20 |
| 9.42 | 11.3 | 15.3 | 19.16 |
| 6.6 | 8.75 | 12.9 | 15.9 |
| 5.4 | 7.25 | 11.1 | 14.1 |
| 5.38 | 6.95 | 8.95 | 11.05 |
| 4.62 | 6.05 | 8.05 | 9.95 |
| 19.2 | 24.1 | 29.3 | 33.9 |
| 0.5 | 1 | 1 | 1 |
| 1.5 | 1.8 | 2.4 | 3 |
| 10.58 | 12.7 | 16.7 | 20.84 |
| 9.42 | 11.3 | 15.3 | 19.16 |
| Thread Size | M3 | 5# | 1/8” | M4 | |
|---|---|---|---|---|---|
| Diameter | 3 | 3.175 | 3.175 | 4 | |
| UNC | - | 40 | 40 | - | |
| UNF | - | 44 | 44 | - | |
| Coarse Pitch | 0.5 | 0.635 | 0.635 | 0.7 | |
| Fine Pitch | 0.35 | 0.5773 | 0.5773 | 0.5 | |
| #8 | 3/16” | 10# | M5 | M6 | 1/4“ |
| 4.1656 | 4.7625 | 4.826 | 5 | 6 | 6.35 |
| 32 | 24 | 24 | - | - | 20 |
| 36 | 32 | 32 | - | 6 | 28 |
| 0.7938 | 1.0583 | 1.0583 | 0.8 | 1 | 1.27 |
| 0.7056 | 0.7938 | 0.7938 | 0.5 | 0.5 | 0.9071 |
| 1/4“ | 5/16” | 5/16” | M8 | 3/8” | 3/8” |
| 6.35 | 7.9375 | 7.9375 | 8 | 9.525 | 9.525 |
| 20 | 18 | 18 | - | 16 | 16 |
| 26 | 24 | 22 | - | 24 | 20 |
| 1.27 | 1.4111 | 1.4111 | 1.25 | 1.5875 | 1.5875 |
| 0.9769 | 1.0583 | 1.1545 | 1 | 1.0583 | 1.27 |
| M10 | 7/16” | 7/16” | M12 | 1/2” | 1/2” |
| 10 | 11.1125 | 11.1125 | 12 | 12.7 | 12.7 |
| - | 14 | 14 | - | 13 | 13 |
| - | 20 | 18 | - | 20 | 18 |
| 1.5 | 1.8143 | 1.8143 | 1.75 | 1.9538 | 1.9538 |
| 1 | 1.27 | 1.4111 | 1.5/1 | 1.27 | 1.4111 |
| M14 | 9/16” | 9/16” | 5/8” | 5/8” | M16 |
| 14 | 14.2875 | 14.2875 | 15.875 | 15.875 | 16 |
| - | 12 | 12 | 11 | 11 | - |
| - | 18 | 16 | 18 | 14 | - |
| 2 | 2.1167 | 2.1167 | 2.3091 | 2.3091 | 2 |
| 1.5 | 1.4111 | 1.5875 | 1.4111 | 1.8143 | 1.5 |
| M18 | 3/4” | 3/4” | M20 | M22 | 7/8” |
| 18 | 19.05 | 19.05 | 20 | 22 | 22.225 |
| - | 10 | 10 | - | - | 9 |
| - | 16 | 16 | - | - | 14 |
| 2.5 | 2.54 | 2.54 | 2.5 | 2.5 | 2.8222 |
| 2 | 1.5875 | 1.5875 | 2/1.5 | 2 | 1.8143 |
| 7/8” | M24 | 1” | 1” | |
| 22.225 | 24 | 25.4 | 25.4 | |
| 9 | - | 8 | 8 | |
| 11 | - | 12 | 10 | |
| 2.8222 | 3 | 3.175 | 3.175 | |
| 2.3091 | 2/1.5 | 1.1167 | 2.54 |
